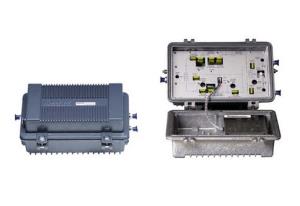

Khuếch đại nhánh Oudoor : Product Description

Khuếch đại nhánh Oudoor : We are professional manufacture in CATV line in China, we offer CATV splitter, CATV amplifier, CATV optical receiver, CATV optical transmitter, CATV optical optical switch, EDFA and so on.

CATV amplifier feature:

Design for bi-directional network behind optical receiver. High gain and output imported module, more economical and applied. Perfect bi-directional structure brings installation and debugging convenient.

1. Adopt Philips or Motorola imported high-gain module to amplify
2. Equalizer, attenuator have fixed and adjustable structure for selection.
3. Output splitter or coupler can plug change to make engineering debug more agile.
4. Forward and reverse fore-and-aft have independent test port, easy to debug.
5. Return channel adopt Philips or Motorola amplify module, good quality duplex filter, plug fixed attenuators and equalizers, makes it high C/N, easy to debug.
6. High reliable switch power and strict anti-thunder system fit for safe steady work in worse weather.
7. Suitable large or middle-size bi-directional network main trunk signal transmission, can substitute imported and famous brand machine.

nsmission

Frequency  Range

MHz

45(87)~862

45(87)~750

45(87)~550

Rated  Gain

dB

≥ 24

≥ 28

≥ 27

≥ 30

≥ 27

≥ 30

Flatness  In  Band

dB

± 0.75

± 0.75

± 0.5

Rated  Input  Level

dBμ V

72

Rated  Output  Level

dBμ V

96

100

99

102

99

102

Gain  Adjustable  Range

dB

Adjustable:   0~15dB,   Fixed:   3, 6, 9, 12, 15

Slope  Adjustable  Range

dB

Adjustable:   0~24dB,   Fixed:   6, 9, 12, 15, 18

Noise  Figure

dB

≤ 12

Composite  Triplee  Beat

dB

60

Composite  Second  Order

dB

60

Return  Loss

dB

≥ 12

≥ 14

≥ 16

Reverse  Transmission

Frequency  Range

MHz

5~30(65)

Flatness  In  Band

dB

± 0.75

Return  Loss

dB

≥ 14

Rated  Gain

dB

0  or  20  selected

MAX  Output  Level

dBμ V

≥ 110

Gain  Adjustable  Range

dB

0~15

Slope  Adjustable  Range

dB

0~10

General  response

Power  Voltage  (50Hz)

V

A:   ~(130-265)  V,   B: ~(30-80)V  (20W)

Thunder  Stroke

KV

5  (10/700μ S)

Dimension

mm

270× 215× 118
