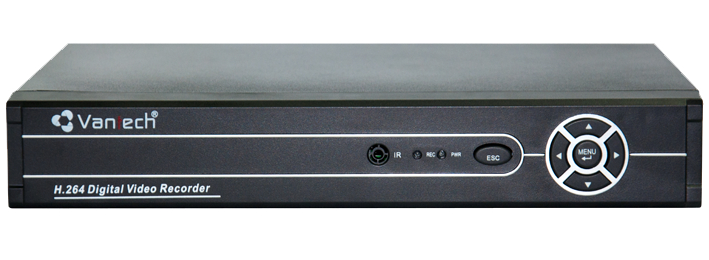

- Đầu ghi hình công nghệ AHD 4 kênh, chuẩn nén hình ảnh H.264 cho hình ảnh đẹp và sắc nét.
- Công nghệ AHD (Analog High Definition): Cho hình ảnh độ nét cao, có khả năng truyền dữ liệu với khoảng cách lên đến 500 mét mà không có yêu cầu đặc biệt về hệ thống cáp truyền
Model | VP-460AHDL | |
System | Main Processor | Dual-core embedded processor |
Operating System | Embedded LINUX | |
Video | Analog camera input | Max 4 channel AHD-L / Normal Analog |
IP camera input | Max 4CH 1080P/ 8CH D1 | |
Standard | NTSC/PAL | |
Audio | Input | 1 |
Output | 1 | |
Display | Interface | HDMI +VGA + BNC |
Resolution | 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | |
Display Split | 1/4 | |
Recording | Video/Audio Compression | H.264 / G.711 |
Resolution | Max 4 CH Full AHD-L for AHD camera or Normal Analog Camera | |
Max 8 CH Full D1/ 4CH 1080P for IP Camera | ||
Record Mode | Schedule, Manual, Stop. | |
Record Interval | 1~120 min (default: 60 min) | |
Video Detection & Alarm | Event Type | No Storage, Storage Error, Storage No Space, Disconnect, IP Conflict |
Trigger Events | Show Message, Buzzer, Mobile Reported, Send Email, Push Video | |
Motion Detection | Motion Detection, MD Zones: 192 (12 x 16), Video Loss & Video Blind | |
Alarm Input | N/A | |
Alarm Output | N/A | |
Playback & Backup | Sync Playback | 1/4 |
Search Mode | Time/Date, Alarm, Smart search | |
Playback Functions | Play, Pause, Stop, Fast forward, Slow forward, Full screen | |
Backup Mode | USB Device/ Network | |
Network | Ethernet | RJ-45 port (10/100M) |
Network Functions | HTTP, IP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |
Cloud | Support | |
Smart Phone | IOS, Android | |
Storage | Internal HDD | 1 SATA port, up to 3TB |
Auxiliary | USB Interface | 2 ports, USB2.0 |
Interface | RS485 | N/A |
General | Power Supply | DC 12V, 2A |
Dimension (mm) | 255(L) x 210(W) x 47(H) | |
Working Environment | 0°C~+60°C / 10%~90%RH / 86~106kpa | |
Weight | 750g (without HDD) |
